Posidyne Clutches and Clutch Brakes Featuring Oil Shear Technology

Eliminate Constant Repair in High Cycle or Severe Duty Applications

clutchbrakesPosidyne Clutch Brakes with Oil Shear Technology are designed to provide start stop indexing for high cycle, severe duty applications where high reliability is critical and downtime very costly. Allowing the motor to run continuously provides high cycle capability up to 300 CPM, improves efficiency, eliminates inrush current, reduces cyclic inertia by not cycling the motor armature, and reduces maintenance costs.

The basic Posidyne is designed as a foot mounted clutch brake in totally enclosed cast iron housing with input and output shafts. The Posidyne 1.5 is a lightweight C Face model with a quill input shaft and standard output shaft, and the Posidyne X Class is a value engineered C Face unit with quill input and standard output shaft.

Oil Shear Technology Makes the Difference

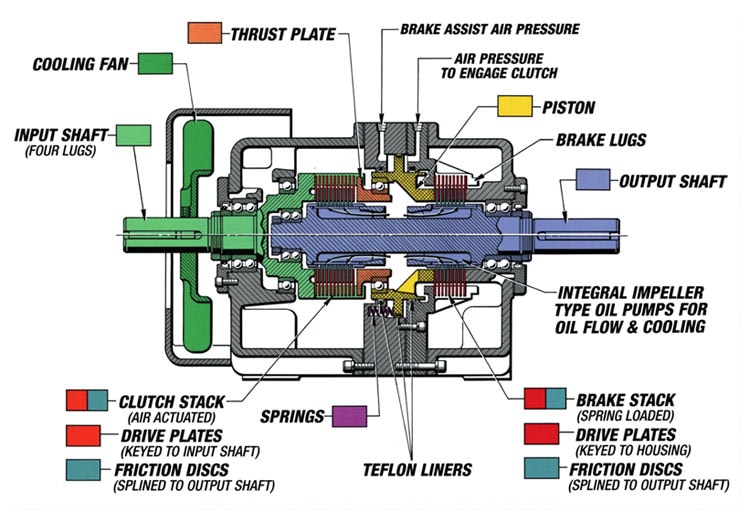

They are all made up of a clutch stack and brake made up of alternating friction discs connected to the output shaft, and drive plates connected to the input shaft or housing, a centrally located air or hydraulically actuated piston to exert pressure on either the clutch stack or brake stack – never both. Actuation pressure on the friction stack establishes the torque transmitted by that stack and is independently adjustable.

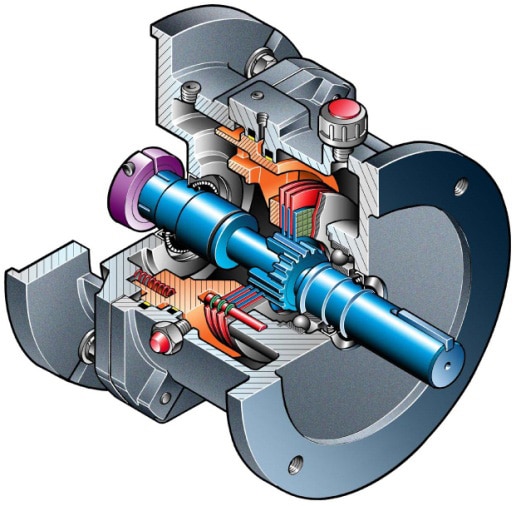

Transmission fluid circulating through the unit flows through an open center hub, through the friction stack, and out to the housing. Cooling occurs as the fluid runs back to the bottom of the unit to be recirculated. This system called Oil Shear Technology prevents wear on the friction surfaces, removes heat from the friction area to the housing, and lubricates all internal parts.

Transmission fluid circulating through the unit flows through an open center hub, through the friction stack, and out to the housing. Cooling occurs as the fluid runs back to the bottom of the unit to be recirculated. This system called Oil Shear Technology prevents wear on the friction surfaces, removes heat from the friction area to the housing, and lubricates all internal parts.

Tyipical Applications include:

High Cycle—Up to 300 CPM
          Long Life—5 to 10 Times Longer
                   Heavy Duty Totally Enclosed Housing



Posidyne Clutch Brake Model Types

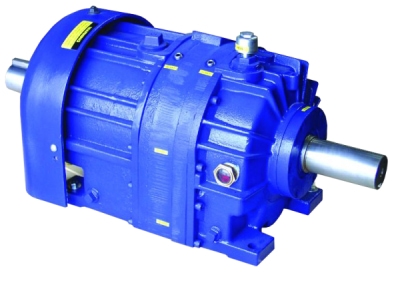

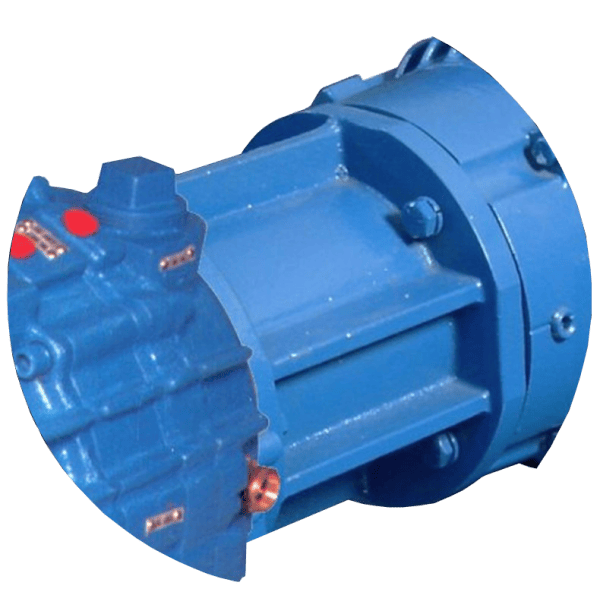

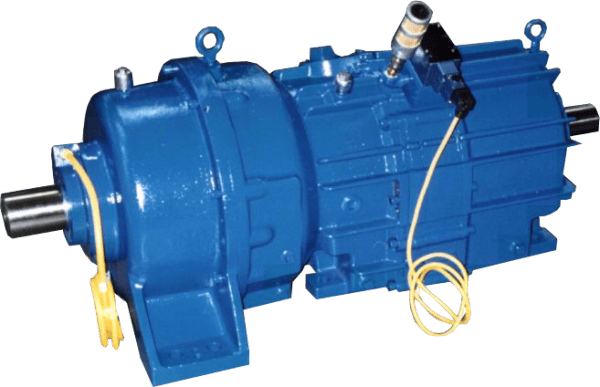

Posidyne 11 Output EndPosidyne Clutch Brakes for Heavy Duty, High Cycle Applications

  • Torque: 518 Lb. Ins. to 79,000 Lb. Ins.
  • HP: 1 HP to 1500 HP.
  • Air or Hydraulic actuation
  • Cooling: Basic, Fan, Water, and Forced Lube
  • Optional C-Face or Piggyback Available

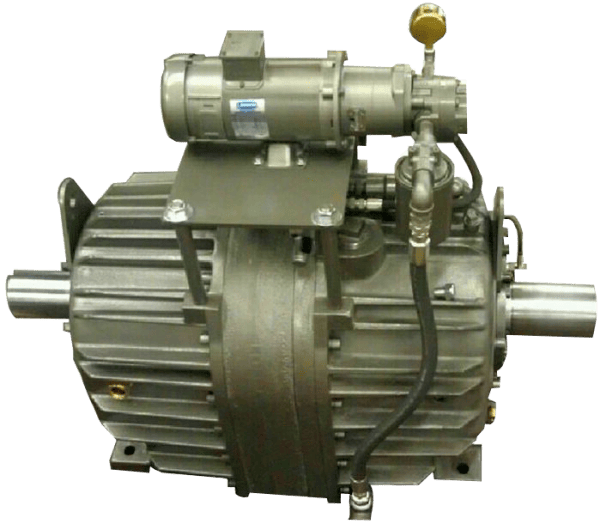

  • Wash Down, Marine Duty, Hazardous Duty

Specifications   Dimensions   How To Order


Oil Shear Technology Is the Difference

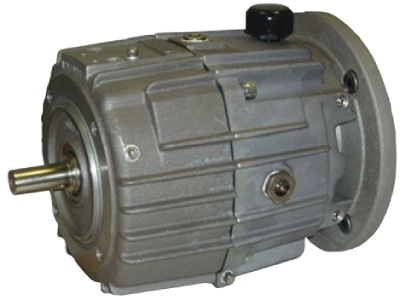

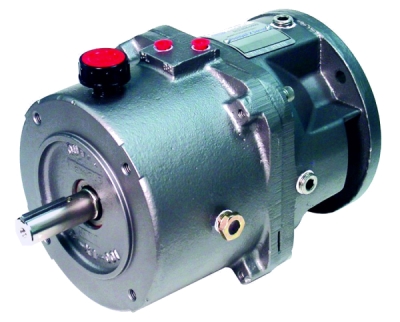

Posidyne Size 1.5 Clutch Brake with Lightweight HousingPosidyne Washdown

  • Torque 427 Lb. Ins. 5 HP
  • Air or Hydraulic actuation
  • Cooling: Basic
  • C Face Fits NEMA 56 to 184T motor frames
  • Optional Foot Mounting Available
  • Wash Down, Marine Duty, Hazardous Duty

Specifications   Dimensions   How To Order


Oil Shear Technology – Lowest Cost Per Index

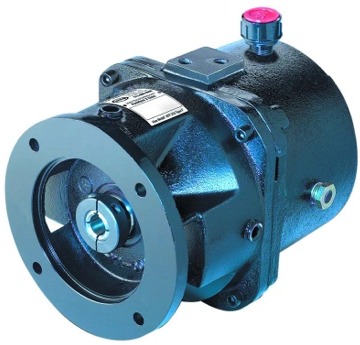

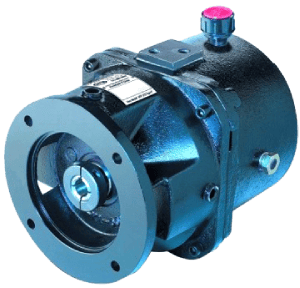

Posidyne X-Class C-Face Clutch Brakes Value Engineered for OEM ApplicationsX Class Washdown Unit

  • Torque: 90 to 1,000 Lb. Ins. of torque. 1 – 25 Hp
  • Fits NEMA 56 to 215 motor frames.
  • Air or hydraulic actuation.
  • Optional input shaft and feet available.
  • Wash Down, Marine Duty, Hazardous Duty

Specifications   Dimensions   How To Order


Oil Shear Technology – Higher Cycle Rates

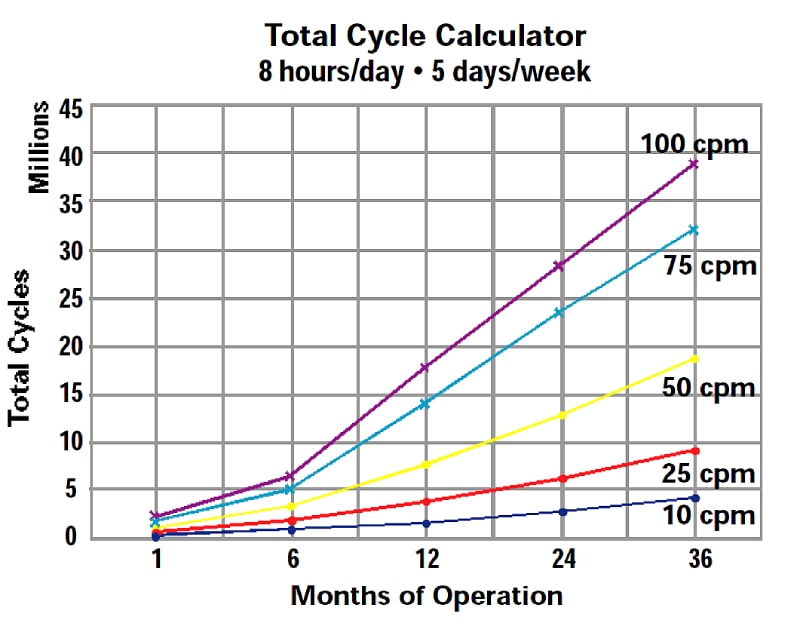

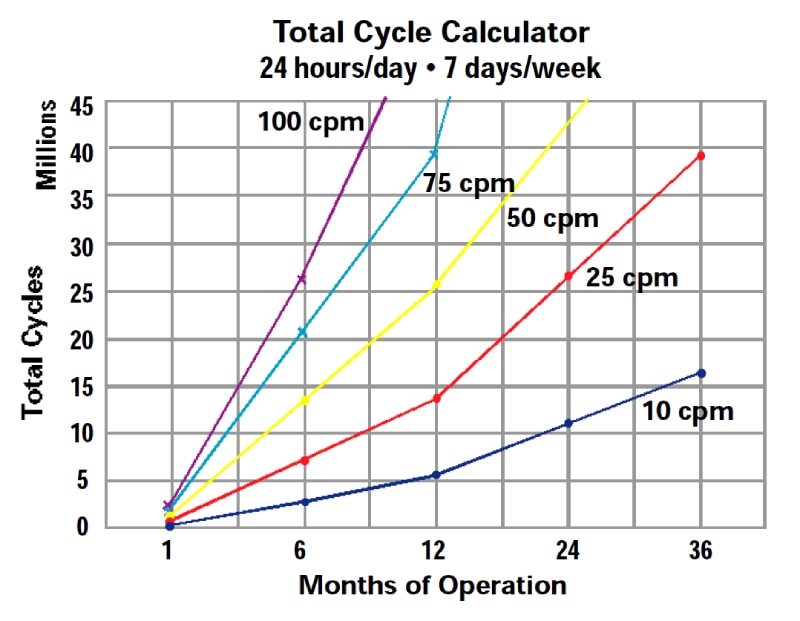

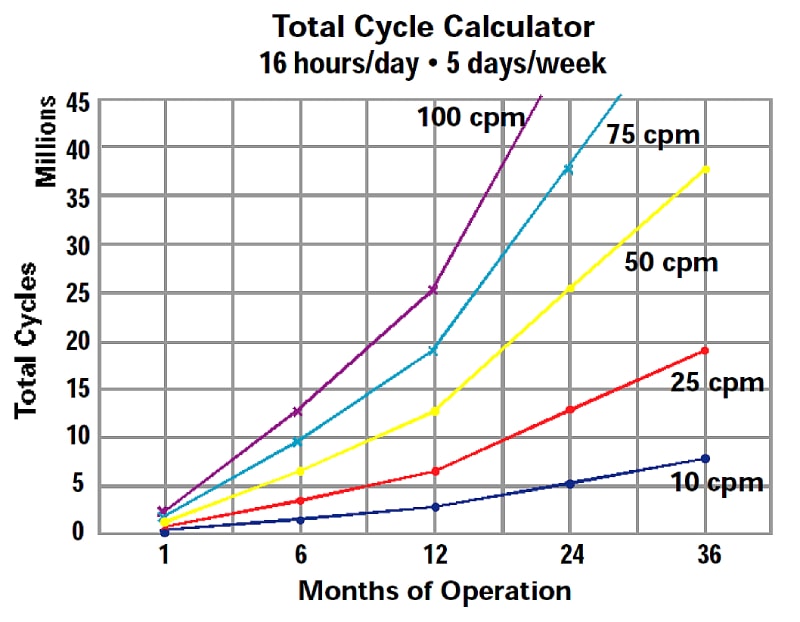

True Cost to Own Comparison Calculator

Download the
True Cost to Own Comparison Calculator
Posidyne Oil Shear Clutch Brakes last so much longer than the popular dry friction inexpensive clutch brakes it is sometimes hard to determine how much savings can be realized.
